Municipal application

The induction lighting is a new type of lamp with high lumen efficiency and long life time

which meet the global low carbon emission and green lighting requirements. It saves a lot of energy and reduces the maintenance cost significantly. The applications show that the same visual effect is reached when the metal halide lamp or sodium lamp is replaced with lower-watt induction lamp, which result in high power factor, the reduced cable size, the reduced initial investment of the power line and the reduced energy.The induction lighting has been used in many areas such as the surrounding area of Beijing Olympic Stadiums,T3 Terminal Building of Beijing Airport, Shanghai Bund Tunnel, Shanghai Volkswagon, Shanghai General Motor, Zhengzhou Yutong Auto, Gree Electrical Appliance, workshops, garage, street and roadway, etc.

A large number of applications show that the induction lighting can save more than 40% of energy

than that of metal halide or sodium lighting system.The induction system and fixture are designed

and manufactured in the same company for high reliability and performance.

Advantages of induction lighting：

No electrode with 100k hours operation, maintance-free, suitable for the high ceiling workshop, sport stadium, roadway and building where are difficult to access;

No flash with soft and gentle lighting, CRI more than 80 with good visual effect

High luminance and low lamp depreciation to meet the lighting requirement within the life time;

Instant on and instant hot restrike(VS long delay time of start and restrike of HID lamps)

Driven by the eletronic ballast with high power factor and low current to reduce the capacity of power distribution equipment(transformer and cable)

The dimmable range from 40% to 100% fo rating to work with many intelligent dimmer or control systems without compromising lighting effiency and color rendering index to save energy

Unique advantages of induction lighting in the following applications：

Difficult accessible area

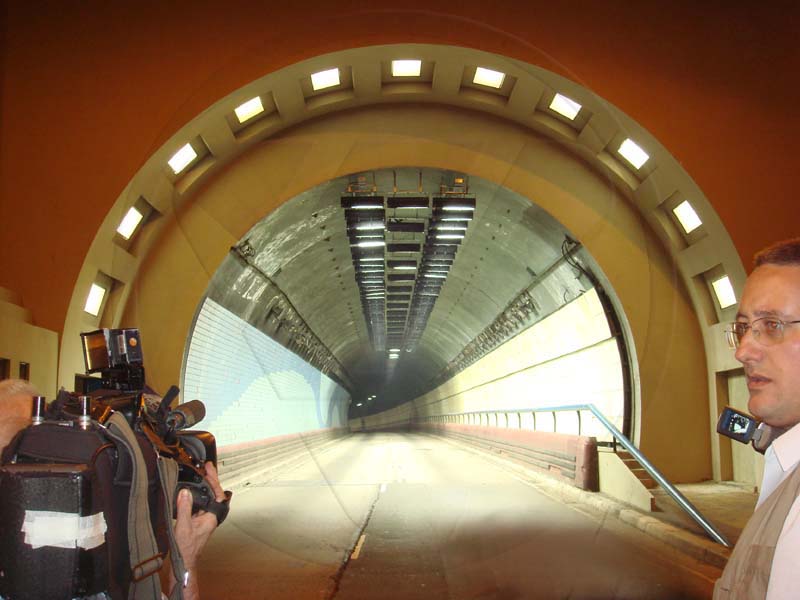

For example, the tunnel lighting requires no maintenance and long lifetime.The relamping has to take place once one or two years for the sodium lamp while the induction lighting does not need relamping in 10 years.The closing of the tunnel

for the maintenance purpose is complicated and troublesome.The induction lighting

is good for manufacturing workshop, roadway, high pole, refrigerator room etc where are difficult to access.

High performance lighting requirement area
The foodstuff, automobile assembly, machining, mechanical fabrication, electronic

and textile industries requires high color rendering index and no dizzy lighting.

The induction lighting is good for workshop, sports stadium, supermarket and

public area.

Longtime operation requirement and frequent on & off area

Instant hot restrike requirement area

Community, park, home, architecture
The low-watt induction lighting are good for these area.

Agriculture and hydroponics
Full spectrum induction lighting is good for the vegetable and flower.The low lamp temperature reduces the lighting distance between the lamp and crop with the same

or better luminance while saving energy VS HID lamp.

Classroom and library
The induction lighting is good for eyesight protection due to the features of

non flash, soft and gentle lighting.

Solar lighting
The induction lighting with DC power design works with the solar panel in the street and other public lighting area to save power supply cable and energy and reduce carbon emission.

High-speed rotation machine workshop
The features of induction lighting with high CRI, high lumen, no shadow, no glare

and no flickering provide a comfortable working environment for human eyes

especially in high-speed rotating machine workshop.

Livestock and poultry farm
Shadowless and no flickering makes the induction lighting suitable for the farm.

Comparison for Induction Lamp and Traditional Lighting Source

Light source	Color Temperature（K）	CRI	Lighting efficiency (Lm/W)	Average lifetime (h)
Incandescent lamp	2800	100	15	1,000
Quartz-Halogen Lamp	3000	100	15	2,000-3,000
Normal fluorescent lamp	Full range	70	70	8,000
Tri-phosphor fluorescent lamp	Full range	80-98	96	10,000
High pressure MV lamp	3300/4300	45	50	3,000-6,000
LPS	1700	44	150-200	14,000-28,000
HPS	2200	23	90-120	12,000-24,000
MH	3000/4500/5600	65-90	75-95	6,000-20,000
Induction lamp	Full range	≥80	70-90	100,000

Comparison Between Induction Lamp and HID lamp

Items	Induction lamp	MH lamp	HPS lamp
Average lifespan	100K hours	15K hours	24K hours
Average operating lifespan	>60K hours	Approx 8K hours	Approx 10K hours
Gear	Electronic	Magnetic ballast, igniter, capacitor (Too many parts resulting in inconvenient maintenance and assembly)	Magnetic ballast, igniter, capacitor (Too many parts resulting in inconvenient maintenance and assembly)
Dimmable function	Low pressure discharge lamp; The lighting efficiency, color temperature and color rendering index do not change or change very little.	High pressure discharge lamp; The lighting efficiency, color temperature, the color rendering index are based on a certain temperature and these performances change a lot when the arc discharge condition changes at dimming condition.	High pressure discharge lamp; The lighting efficiency, color temperature, the color rendering index are based on a certain temperature and these performances change a lot when the arc discharge condition changes at dimming condition.
System wattage	400W: System wattage at 420w 100w: System wattage at 105w	400W: System wattage at 445w. 100W: System wattage at 115w.	400W: System wattage at 445w. 100W: System wattage at 115w.
Starting current	400W: ≤1.95A; 100W: ≤0.49A The low starting current reduces size of the cable and the power distribution cubicle.	400W: ≤5.7A; 100W: ≤2.4A	400W: ≤7.5A; 100W: ≤2.4A
Power factor	≥0.98	0.43 (≥0.85 after power factor correction)	0.43 (≥0.85 after power factor correction)
System lighting efficiency	＞80 lm/w	＞80 lm/w	＞85 lm/w
CRI (Color rendering index)	＞80 (Easy and clear identification for vehicles and pedestrians)	60-70	23
Color temperature	2700K to 6500K	4000K	2200K
Flash effect	No flash and dizzy light	Obvious flash and dizzy light	Obvious flash and dizzy light
Hot restart performance	Instant on	10 to 15 minutes (Negative to the lamp life at hot restart)	5-10 minutes (Negative to the lamp life at hot restart)
Output wattage	Constant output wattage	Variation as per voltage fluctuation	Variation as per voltage fluctuation
Voltage VS lamp power	±20%/ ±3%	±10%/±20%	±10%/±20%
